SMPTE311M Câble DRAKA Fibre Hybrid HDTV Caméra Ø 9.2mm PUR noir

Construction

Element 1: Auxiliary Conductors AWG20 (4 x 0.6 mm2)
Conductor tinned stranded copper wires, 19 x 0.20 mm, diameter 1.0 mm
Insulation HDPE, diameter 1.5 mm (FRNC-C = LSOH)
Identification 2 x black, 2 x white

Element 2: Signal Conductors AWG24 (2 x 0.22 mm2)
Conductor tinned stranded copper wires, 7 x 0.20 mm, diameter 0.6 mm
Insulation HDPE, diameter 1.1 mm (FRNC-C = LSOH)
Identification 1 x red, 1 x grey

Element 3: Fibre Optic Simplex Single Mode (2 x 9/125μ) (BBXS)
Mode field diameter at 1310 nm, diameter 9.5 μm ± 1 μm
Cladding diameter diameter 125 μm ± 1 μm
Concentricity error ≤ 1 μm
Coating material UV-cross-linked Acrylate, diameter 245 μm
Buffer material Thermoplastic, diameter 0.9 μm ± 0.05 μm
Identification 1 x blue, 1x yellow
Strength Element Aramid yarn
Sheath 1 x blue, 1x yellow, diameter 1.6 mm

Element 4: Strength Member AWG16 (1 x 1.22 mm2)
Conductor galvanized steel wires, diameter 1.6 mm
Insulation HDPE, diameter 2.1 mm (FRNC-C = LSOH)
Identification 1 x white

Stranding

Core: 1x Element 4, diameter 2.1 mm
Layer: 4x Element 1 + 2x Element 2 + 2x Element 3, diameter 5.2 mm

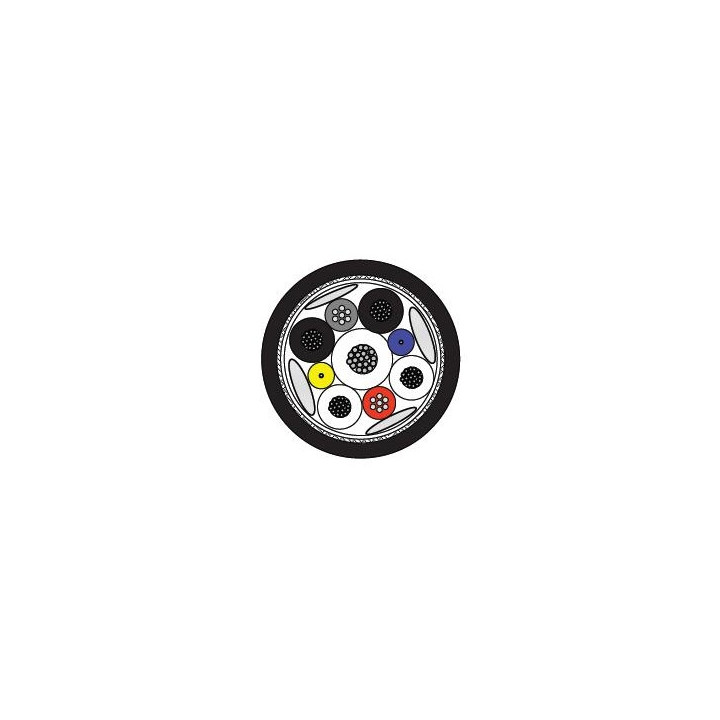

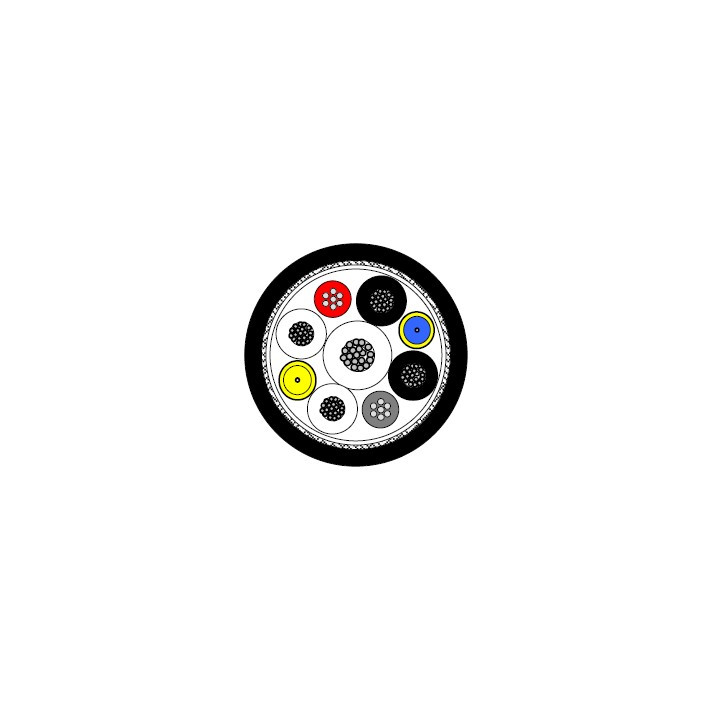

Sequence according to the above drawing

Wrapping

1 x non-woven fabric tape, diameter 5.4 mm

Screen

Copper wire braid, tinned, diameter 5.9 mm

Sheath
PUR or LSOH or FRNC-C (FRNC-C with additional Al-Pet foil) diameter 9.2 mm black, RAL 9005

Printing
PUR: DRAKA SMPTE 311 M Zero-Loss HD Cable + batch number + meter marking
LSOH: DRAKA SMPTE 311 M Zero-Loss HD Cable FRNC + batch number + meter marking CPR class Eca
FRNC-C: DRAKA SMPTE 311 M Zero-Loss HD Cable FRNC-C + batch number + meter marking CPR class Cca s1a d1
